L0520P

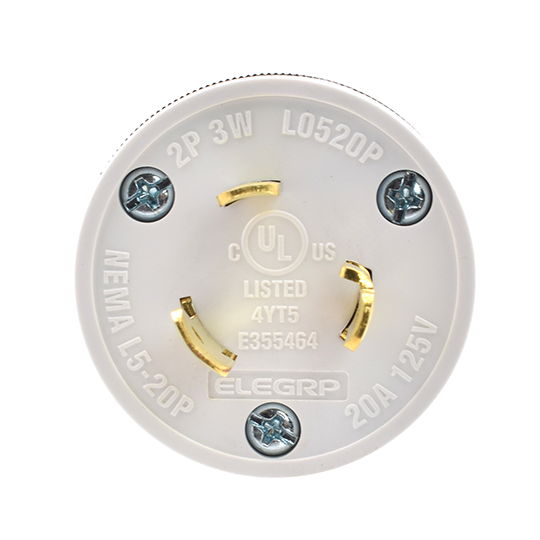

Locking Plug, 20 AMP 125 Volt L5-20P
Locking Plug, 20 AMP 125 Volt L5-20P
Add to list
- Features
- Download
-
- High impact and heat resistance provide maximum safety and longer life.
- Ergonomic, fluted body design with radial grip ridge is ideal for gripping, turning and pulling.
- High-conductivity, corrosion resistant material for reliable, low resistance to fault currents.
- The assembly locks together to make the most abuse resistant receptacle ever.
Technical Parameters
-
ModelL0520P
-
Indoor/OutdoorIndoor Use Only
-
Indicator lightNO
-
GroundingGrounding
-
Pole & Wire2-Pole, 3-Wire
-
NEMAL5-20P
-
StructureTwist-Lock
-
GradeCommercial
-
Voltage125V
-
Amperage20A
-
CertificationUL/CUL
-
Product Size(HxWxD)51x51x90mm
-
Standard ColorBlack
