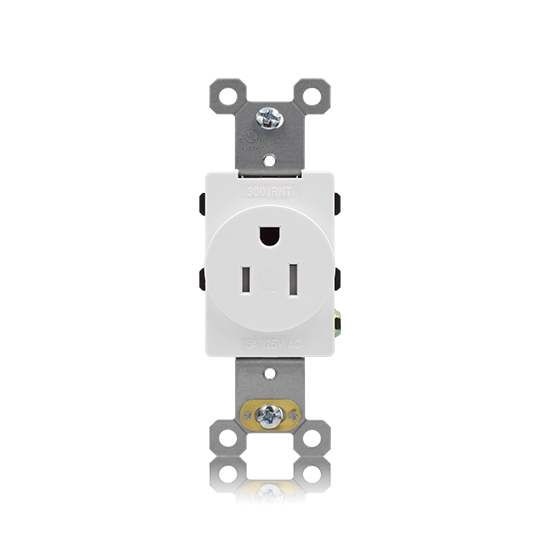

3001RNT

15 Amp Single Outlet, Side Wire & Back Wire, Residential Grade

15 Amp Single Outlet, Side Wire & Back Wire, Residential Grade

Add to list
  • Features
  • Download
    • High-impact thermoplastic face and back body eliminate cracks, breaks and callbacks.
    • Back wire ground clamp for fast and secure wiring.
    • Self-grounding clip assures positive ground.
    • Push-in quick back wring holes allow faster, easier installation.
    • Heavy-duty compact design for easier installation and long-lasting performance.
    • All four contact screws and the ground screw are backed-out.
    • Self-grounding clip assures positive ground.
    • Wrap-around galvanized steel straps.
    • Heavy-Duty nylon body and cover for outstanding resistance to impact and harsh chemicals.
    • Compact body design allows for adequate wiring room in the wallbox.
    • Heavy interior walls provide additional support to ensure contact retention.
    • One-piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.

Technical Parameters

  • Model
    3001RNT
  • Indoor/Outdoor
    Indoor Use Only
  • Indicator light
    NO
  • Wiring Accom.
    #12-#14AWG Copper Wire
  • Wiring Method
    Side Wire & Back Wire
  • Weather Resistant
    No
  • Tamper Resistant
    No
  • Grounding
    Grounding
  • Pole & Wire
    2-Pole, 3-Wire
  • NEMA
    5-15R
  • Structure
    Single Device
  • Finish
    Glossy
  • Grade
    Residential
  • Wattage
    1875W
  • Voltage
    125V
  • Amperage
    15A
  • Certification
    UL/CUL
  • Product Size(HxWxD)
    106x39x25mm
  • Operating Temperature
    -40℃ to 60℃
  • Standard Color
    White/Ivory/Light Almond/Black/Gray/Brown
