2204

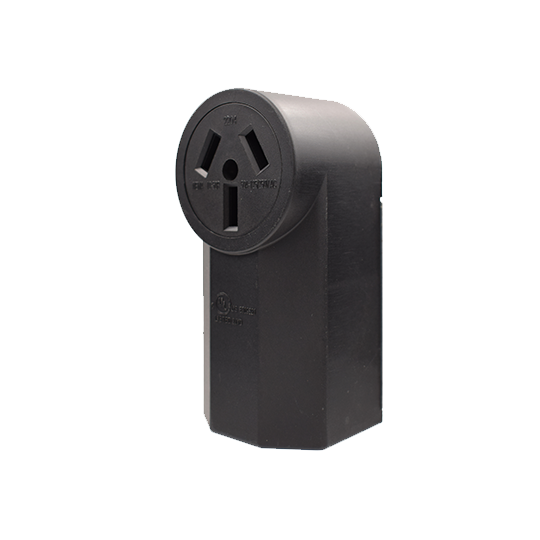

Surface Mount Power Outlet, 50 Amp 125/250 Volt 10-50R
Surface Mount Power Outlet, 50 Amp 125/250 Volt 10-50R
Add to list
- Features
- Download
-
- Range and dryer devices offer heavy-duty connections in either surface mount or flush mount configurations.
- Heavy gauge galvanized steel mounting strap for corrosion resistance.
- Flush receptacles are completely ready-to-wire, shorten installation time significantly.
- Surface receptacles with adjustable cord clamp allow for wiring.
- Receptacles for use with copper or aluminum wire.
- Flush receptacles fit two-gang enclosure.
Technical Parameters
-
Model2204
-
Standard ColorBlack
-
Product Size(HxWxD)131x64x53mm
-
CertificationUL/CUL
-
Amperage50A
-
Voltage125V/250V
-
GradeCommercial
-
StructureSurface Mount
-
NEMA10-50R
-
Pole & Wire3-Pole, 3-Wire
-
GroundingNon-grounding
-
Tamper ResistantNo
-
Weather ResistantNo
-
Wiring Accom.AL/CU Wire
-
Indicator lightNO
-
Indoor/OutdoorIndoor
